Parametric Arduino Case

When you make a project using an Arduino board, you often need a case to attach the Arduino onto your project. This small project is my first attempt to make such a case that can be adapted to all my projects.

To make it parametric I am using the OpenScad application. OpenScad is an open source  3D modeling software that allows you to model your objects using a dedicated scripting language. Because your object is made out of code, it is easy to make designes that are defined by configurable parameters.

Openscad

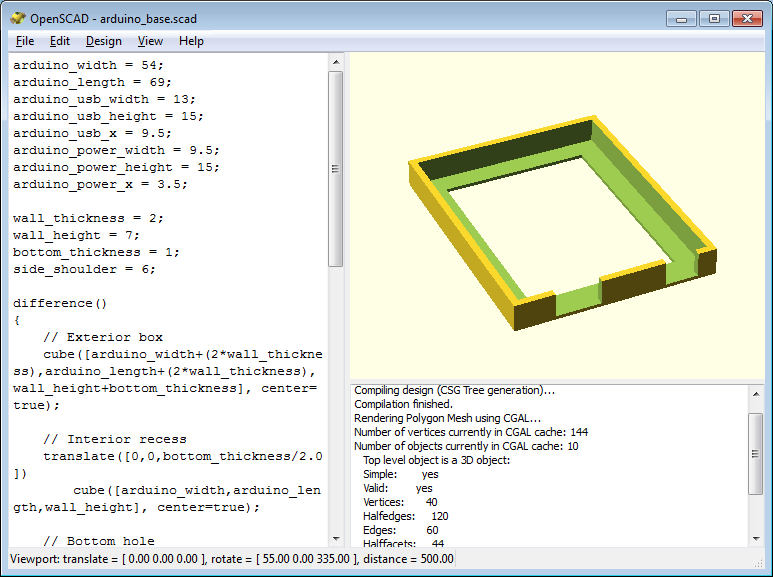

Following is the code of the arduino case. As you will see at the top of the listing, many variables are defined so that you can adapt the object to your needs.

arduino_width = 54;
arduino_length = 69;
arduino_usb_width = 13;
arduino_usb_height = 15;
arduino_usb_x = 9.5;
arduino_power_width = 9.5;
arduino_power_height = 15;
arduino_power_x = 3.5;

wall_thickness = 2;
wall_height = 7;
bottom_thickness = 1;
side_shoulder = 6;

difference()
{
	// Exterior box
	cube([arduino_width+(2*wall_thickness),
              arduino_length+(2*wall_thickness),
              wall_height+bottom_thickness],
              center=true);

	// Interior recess
	translate([0,0,bottom_thickness/2.0])
		cube([arduino_width,
                      arduino_length,
                      wall_height],
                      center=true);

	// Bottom hole
	cube([arduino_width-(2*side_shoulder),
              arduino_length-(2*side_shoulder),
              wall_height+bottom_thickness],
              center=true);

	// USB hole
	translate([-1*((arduino_width/2.0)-(arduino_usb_width/2.0)-arduino_usb_x),
		    -1*(arduino_length/2.0)-(wall_thickness/2.0),
		    -1*(wall_height/2.0-arduino_usb_height/2.0)+bottom_thickness/2.0])
	{
		cube([arduino_usb_width,
                      wall_thickness,
                      arduino_usb_height],
                      center=true);
	}

	// Power hole
	translate([((arduino_width/2.0)-(arduino_power_width/2.0)-arduino_power_x),
	    -1*(arduino_length/2.0)-(wall_thickness/2.0),
	    -1*(wall_height/2.0-arduino_power_height/2.0)+bottom_thickness/2.0])
	{
		cube([arduino_power_width,
                      wall_thickness,
                      arduino_power_height],
                      center=true);
	}

}
